AXK 1528 Cylindrical Roller Thrust Bearing Extra Large Customized Size

Product Categories
DWR Bearing Co., Ltd
Contact Now

AXK 1528 Cylindrical Roller Thrust Bearing Extra Large Customized Size

Brand Name : INA

Model Number : AXK 1528

Certification : ISO9001:2008

Place of Origin : China

MOQ : 1pc

Price : USD 1.0/pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs per month

Delivery Time : 7 working days

Packaging Details : Normal package or according to your needs

Type : Thrust roller bearing

Precision Rating : ABEC-1,ABEC-3,ABERC-5

Material : Chrome Steel/GCr15

Cage : Steel Cage.Brass Cage

Contact Now

AXK 1528 Cylindrical Roller Thrust Bearing Extra Large Customized Size

Product Description

Thrust roller bearings are used to axial load mainly axial, radial joint load, but the radial load should not exceed 55% of the axial load. With other thrust roller bearings, such bearings friction coefficient is lower, higher speed, and aligning performance. Standard design thrust cylindrical roller bearings with metal solid cage, cage according to user requirements, can be applied to other types or materials. Reasoning tapered roller bearings can withstand axial load, the limit bearing axial displacement, it can be used as a one-way axial positioning. Thrust cylindrical roller bearings, bearing capacity, relative sliding small, but the lower speed limit.

Typical application

Applications of these bearings can be found in steel industry, mining&construction, papermaking machinery, gearboxes, injection molding machines, motorcycles, crane hooks, pump, centrifuge, jack, speed reducer.

Basic Info
  • Model NO.: AXK 1528
  • The Number of Rows: Single
  • Material: Bearing Steel
  • Load Direction: Thrust Bearing
  • Quality Control: Abec-1, Abec-3, Z1V1, Z2V2
  • Target Market: Europe, Asia, USA
  • Trademark: DWR Or Your Brand
  • Specification: ISO9001-2008
  • HS Code: 84821020
  • Rolling Body: Roller Bearings
  • Outer Dimension: Extra Large (440mm)
  • Spherical: Aligning Bearings
  • Separated: Separated
  • Company Nature: Manufacturer
  • OEM Order: Acceptable
  • Transport Package: Single Color Box Packing
  • Origin: Linqing of China

Quality control of Bearing for all bearing series

  • Assembly
  • Windage test
  • Cleaning
  • Rotary test
  • Greasing and gland
  • Noise inspection
  • Apprearance inspection
  • Rust prevention
  • Product packing

AXK 1528 Cylindrical Roller Thrust Bearing Extra Large Customized Size

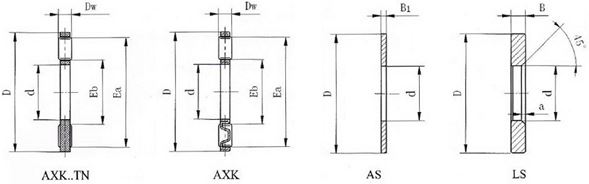

Bearing No. Thrust Washer Boundary Dimensions (mm) Basic Load Rating (KN) Limited
Speed		 Mass
d D Dw B1 B a Eb Ea C Co rpm kg
AXK0414TN AS0414 　 4 14 2 1 　 　 5 13 3.52 6.40 16800 0.001
AXK0515TN AS0515 　 5 15 2 1 　 　 6 14 3.80 7.36 16800 0.001
AXK0619TN AS0619 LS0619 6 19 2 1 2.75 0.3 7 18 5.44 12.40 15200 0.004
AXK0821TN AS0821 LS0821 8 21 2 1 2.75 0.3 9 20 6.24 15.52 14400 0.004
AXK1024 AS1024 LS1024 10 24 2 1 2.75 0.3 12 23 7.36 20.40 13600 0.007
AXK1226 AS1226 LS1226 12 26 2 1 2.75 0.3 14 25 7.92 23.20 12000 0.008
AXK1528 AS1528 LS1528 15 28 2 1 2.75 0.3 17 27 9.04 28.80 10400 0.009
AXK1730 AS1730 LS1730 17 30 2 1 2.75 0.3 19 29 9.52 31.60 9600 0.009
AXK2035 AS2035 LS2035 20 35 2 1 2.75 0.3 22 34 10.48 37.20 8000 0.013
AXK2542 AS2542 LS2542 25 42 2 1 3.00 0.6 29 41 11.76 46.40 6800 0.019
AXK3047 AS3047 LS3047 30 47 2 1 3.00 0.6 34 46 13.04 56.00 6000 0.022
AXK3552 AS3552 LS3552 35 52 2 1 3.50 0.6 39 51 14.24 64.80 5200 0.029
AXK4060 AS4060 LS4060 40 60 3 1 3.50 0.6 45 58 22.40 91.20 4800 0.040
AXK4565 AS4565 LS4565 45 65 3 1 4.00 0.6 50 63 24.00 102.40 4000 0.050
AXK5070 AS5070 LS5070 50 70 3 1 4.00 0.6 55 68 25.60 114.40 3840 0.055
AXK5578 AS5578 LS5578 55 78 3 1 5.00 0.6 60 76 30.40 148.80 3440 0.088
AXK6085 AS6085 LS6085 60 85 3 1 4.75 1.0 65 83 35.60 187.20 3200 0.097
AXK6590 AS6590 LS6590 65 90 3 1 5.25 1.0 70 88 37.20 204.00 2960 0.115
AXK7095 AS7095 LS7095 70 95 4 1 5.25 1.0 74 93 43.20 204.00 2800 0.123
AXK75100 AS75100 LS75100 75 100 4 1 5.75 1.0 79 98 44.00 212.00 2640 0.142
AXK80105 AS80105 LS80105 80 105 4 1 5.75 1.0 84 103 44.80 224.00 2480 0.151
AXK85110 AS85110 LS85110 85 110 4 1 5.75 1.0 89 108 46.40 232.00 2400 0.159
AXK90120 AS90120 LS90120 90 120 4 1 6.50 1.0 94 118 58.40 324.00 2160 0.234
AXK100135 AS100135 LS100135 100 135 4 1 7.00 1.0 105 133 72.80 448.00 2000 0.350
AXK110145 AS110145 LS110145 110 145 4 1 7.00 1.0 115 143 77.60 496.00 1840 0.385
AXK120155 AS120155 LS120155 120 155 4 1 7.00 1.0 125 153 81.60 544.00 1680 0.415
AXK130170 AS130170 LS130170 130 170 5 1 9.00 1.0 136 167 106.40 672.00 1520 0.663
AXK140180 AS140180 LS140180 140 180 5 1 9.50 1.0 146 177 110.40 720.00 1440 0.749
AXK150190 AS150190 LS150190 150 190 5 1 9.50 1.0 156 187 114.40 768.00 1360 0.796
AXK160200 AS160200 LS160200 160 200 5 1 9.50 1.0 166 197 118.40 816.00 1280 0.842
  • Bearing No.
    Boundary dimensions
    Basic load ratings(kN)
    Limiting speed
    Mass
    mm
    Dynamic
    Static
    rpm
    kg
    d
    D
    B
    rsmin
    Cr
    Cor
    Oil
    ≈
    29230
    150
    215
    39
    1.5
    340
    1,340
    1,800
    4.56
    29232
    160
    225
    39
    1.5
    360
    1,460
    1,700
    4.88
    29234
    170
    240
    42
    1.5
    425
    1,770
    1,600
    6.02
    29236
    180
    250
    42
    1.5
    450
    1,920
    1,600
    6.27
    29238
    190
    270
    48
    2
    530
    2,230
    1,400
    8.8
    29240
    200
    280
    48
    2
    535
    2,300
    1,400
    9.14
    29317
    85
    150
    39
    1.5
    265
    820
    2,300
    2.94
    29318
    90
    155
    39
    1.5
    285
    915
    2,300
    3.08
    29320
    100
    170
    42
    1.5
    345
    1,160
    2,100
    3.94
    29322
    110
    190
    48
    2
    445
    1,500
    1,800
    5.78
    29324
    120
    210
    54
    2.1
    535
    1,770
    1,600
    7.92
    29326
    130
    225
    58
    2.1
    615
    2,100
    1,500
    9.76
    29328
    140
    240
    60
    2.1
    685
    2,360
    1,400
    11.4
    29330
    150
    250
    60
    2.1
    675
    2,390
    1,400
    12
    29332
    160
    270
    67
    3
    820
    2,860
    1,300
    15.9
    29334
    170
    280
    67
    3
    855
    3,050
    1,200
    16.6
    29336
    180
    300
    73
    3
    995
    3,600
    1,100
    21.2
    29338
    190
    320
    78
    4
    1,150
    4,250
    1,100
    26
    29340
    200
    340
    85
    4
    1,280
    4,600
    980
    31.9
