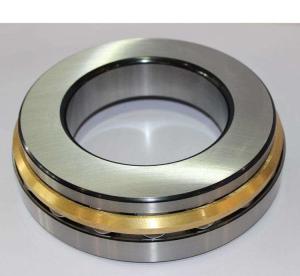

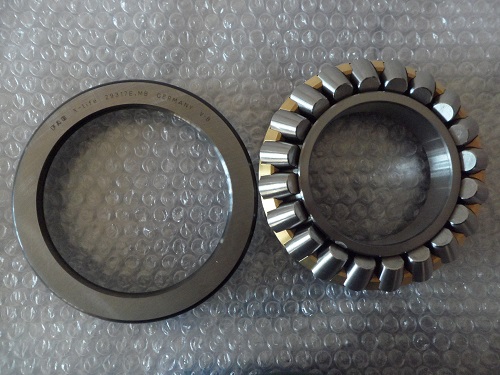

Brass Cage Thrust Needle Roller Bearing Extra Large Customized Size 29318E MB

• Model NO.: 29318 E
• The Number of Rows: Single
• Material: Bearing Steel
• Load Direction: Thrust Bearing
• Quality Control: Abec-1, Abec-3, Z1V1, Z2V2
• Target Market: Europe, Asia, USA
• Trademark: DWR Or Your Brand
• Specification: ISO9001-2008
• HS Code: 84821020

• Rolling Body: Roller Bearings
• Outer Dimension: Extra Large (440mm)
• Spherical: Aligning Bearings
• Separated: Separated
• Company Nature: Manufacturer
• OEM Order: Acceptable
• Transport Package: Single Color Box Packing
• Origin: Linqing of China

Quality control of Bearing for all bearing series

• Assembly
• Windage test
• Cleaning
• Rotary test
• Greasing and gland
• Noise inspection
• Apprearance inspection
• Rust prevention
• Product packing

•

• Bearing No.	Boundary dimensions				Basic load ratings(kN)		Limiting speed	Mass
  	mm				Dynamic	Static	rpm	kg
  	d	D	B	rsmin	Cr	Cor	Oil	≈
  29230	150	215	39	1.5	340	1,340	1,800	4.56
  29232	160	225	39	1.5	360	1,460	1,700	4.88
  29234	170	240	42	1.5	425	1,770	1,600	6.02
  29236	180	250	42	1.5	450	1,920	1,600	6.27
  29238	190	270	48	2	530	2,230	1,400	8.8
  29240	200	280	48	2	535	2,300	1,400	9.14

  29317	85	150	39	1.5	265	820	2,300	2.94
  29318	90	155	39	1.5	285	915	2,300	3.08
  29320	100	170	42	1.5	345	1,160	2,100	3.94
  29322	110	190	48	2	445	1,500	1,800	5.78
  29324	120	210	54	2.1	535	1,770	1,600	7.92
  29326	130	225	58	2.1	615	2,100	1,500	9.76
  29328	140	240	60	2.1	685	2,360	1,400	11.4
  29330	150	250	60	2.1	675	2,390	1,400	12
  29332	160	270	67	3	820	2,860	1,300	15.9
  29334	170	280	67	3	855	3,050	1,200	16.6
  29336	180	300	73	3	995	3,600	1,100	21.2
  29338	190	320	78	4	1,150	4,250	1,100	26
  29340	200	340	85	4	1,280	4,600	980	31.9
