HK1414RS thrust needle roller bearing
thrust needle roller bearing
1. Thrust needle roller bearings are designed to support radial loads and reduce friction between rotating components.
2. The low cross section provides maximum load-carrying capability with a minimum of space required. Thrust needle roller bearings are easily installed with a press fit in the housing.
Needle roller Bearing classification :
1. Radial needle roller and cage assemblies
2. NA, NKI type needle roller bearings
3. RNA, NK model without inner ring needle roller bearings
4. Type HK stamping outer ring needle roller bearing
5. Type BK stamping outer ring needle roller bearing Mounted on the shaft end drawn cup needle roller bearing is open on both sides (1) and unilateral enclosed (2). Closed drawn cup base face can absorb small axial guiding force. Mounted on the shaft end drawn cup needle roller bearing is open on both sides (1) and unilateral enclosed (2). Closed drawn cup base face can absorb small axial guiding force.
| Material | Chrome Steel, Carbon Steel, Stainless steel |
| Precision Grade | P0, P6, P5 |
| Seal type | Open |
| Cage material | Steel, nylon , Brass |
| Package | Single box or according to buyers requirement |
| MOQ | 1PCS |
| Details | 1.Low price |
| 2.Low vibration |
| 3.high rolling accuracy |
| Payment Term | TT or L/C or Western Union |
| Service | 1.OEM |
| 2.Good Service Offered |
| 3.Buyer Label Offered |
| Port | HONG KONG |
| Drawn cup needle roller bearing | HK,BK,MFY,SCE,BCE,BK..RS,F,MF,FY |
| Radial needle roller and cage assemblies | K,KZK,KNL,K..ZW,KBK |
| Needle roller bearing | NK,NKS,RNA49,RNA69,RNAO,NKI,NKIS,NA49,NA69,NAV,RNAV,RNA49..RS,RNA49..2RS |
| Inner ring | IR,LR |
| Yoke type track rollers | RSTO,RNA22..2RSX,NATV,STO,NA22..2RS,NATV..PP,STO..X,NUTR,RNA22..2RS,NATR |
| Curve rollers, cam follower bearing | KR,KRV,KRVE..PP,KR..PP,KRV..PP,NUKR,KRE..PP,KRVE,NUKRE |
| Combined radial thrust bearing | NKIA,NKX,NKX..Z,NKIB,NKXR,NKXR..Z,NX,NX.Z |
| Axial bearing | AXK,AXW |
| One way clutch | HF,HFL |
Specifacation list:

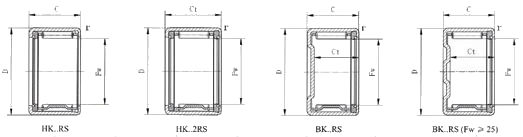

| Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Limited
Speed | Mass |
| Open ends | Closed end | Closed end | Fw | D | C | C1 | Ct | r
min | C | Co | rpm | kg |
| HK0810RS | | HK0812.2RS | 8 | 12 | 10 | 12 | - | 0.4 | 2.20 | 2.08 | 16000 | 0.003 |
| HK1012RS | | HK1014.2RS | 10 | 14 | 12 | 14 | - | 0.4 | 3.52 | 4.08 | 13600 | 0.005 |
| HK1214RS | BK1214RS | HK1216.2RS | 12 | 18 | 14 | 16 | - | 0.8 | 5.20 | 5.84 | 11200 | 0.011 |
| HK1414RS | BK1414RS | HK1416.2RS | 14 | 20 | 14 | 16 | 11.3 | 0.8 | 5.68 | 6.80 | 9600 | 0.013 |
| HK1514RS | BK1514RS | HK1516.2RS | 15 | 21 | 14 | 16 | - | 0.8 | 6.24 | 7.84 | 8800 | 0.015 |
| HK1518RS | | HK1520.2RS | 15 | 21 | 18 | 20 | - | 0.8 | 8.40 | 11.52 | 8800 | 0.018 |
| HK1614RS | BK1614RS | HK1616.2RS | 16 | 22 | 14 | 16 | 11.3 | 0.8 | 6.08 | 7.76 | 8800 | 0.014 |
| | | HK1620.2RS | 16 | 22 | - | 20 | - | 0.8 | 8.72 | 12.24 | 8800 | 0.018 |
| HK1814RS | BK1814RS | HK1816.2RS | 18 | 24 | 14 | 16 | - | 0.8 | 6.48 | 8.72 | 7600 | 0.015 |
| | | HK2016.2RS | 20 | 26 | - | 16 | - | 0.8 | 6.88 | 9.68 | 6800 | 0.018 |
| HK2018RS | BK2018RS | HK2020.2RS | 20 | 26 | 18 | 20 | 15.3 | 0.8 | 10.16 | 16.08 | 6800 | 0.023 |
| HK2214RS | | HK2216.2RS | 22 | 28 | 14 | 16 | - | 0.8 | 7.28 | 10.72 | 6400 | 0.018 |
| HK2218RS | BK2218RS | HK2220.2RS | 22 | 28 | 18 | 20 | - | 0.8 | 10.12 | 17.68 | 6400 | 0.026 |
| | | HK2516.2RS | 25 | 32 | - | 16 | - | 0.8 | 8.80 | 12.16 | 5600 | 0.027 |
| HK2518RS | BK2518RS | HK2520.2RS | 25 | 32 | 18 | 20 | 15.3 | 0.8 | 12.48 | 19.20 | 5600 | 0.031 |
| | | HK2524.2RS | 25 | 32 | - | 24 | - | 0.8 | 15.92 | 26.40 | 5600 | 0.040 |
| | | HK2530.2RS | 25 | 32 | - | 30 | - | 0.8 | 20.40 | 36.00 | 5600 | 0.047 |
| HK2818RS | | HK2820.2RS | 28 | 35 | 18 | 20 | - | 0.8 | 13.12 | 21.20 | 4800 | 0.034 |
| | | HK3016.2RS | 30 | 37 | - | 16 | - | 0.8 | 9.68 | 14.56 | 4800 | 0.031 |
| HK3018RS | BK3018RS | HK3020.2RS | 30 | 37 | 18 | 20 | - | 0.8 | 13.76 | 23.20 | 4800 | 0.036 |
| | | HK3024.2RS | 30 | 37 | - | 24 | - | 0.8 | 17.60 | 31.60 | 4800 | 0.044 |
| | | HK3516.2RS | 35 | 42 | - | 16 | - | 0.8 | 10.48 | 17.04 | 4000 | 0.032 |
| HK3518RS | BK3518RS | HK3520.2RS | 35 | 42 | 18 | 20 | - | 0.8 | 14.96 | 26.80 | 4000 | 0.041 |
| | | HK4016.2RS | 40 | 47 | - | 16 | - | 0.8 | 11.20 | 19.44 | 3600 | 0.037 |
| HK4018RS | BK4018RS | HK4020.2RS | 40 | 47 | 18 | 20 | - | 0.8 | 16.00 | 30.80 | 3600 | 0.048 |
| HK4518RS | BK4518RS | HK4520.2RS | 45 | 52 | 18 | 20 | - | 0.8 | 17.04 | 34.40 | 3600 | 0.054 |
| HK5022RS | BK5022RS | HK5024.2RS | 50 | 58 | 22 | 24 | - | 0.8 | 24.80 | 50.40 | 2880 | 0.081 |
