24132CCW33 SKF Spherical Roller Thrust Bearing , Roller Cage Bearing 160X270X109

Name: 24132CCW33 SKF Spherical Roller Thrust Bearing Roller Cage Bearing 160X270X109
Brand: DWR SKF
Price: 1 USD

China 24132CCW33 SKF Spherical Roller Thrust Bearing , Roller Cage Bearing 160X270X109 wholesale

Brand Name : DWR SKF

Model Number : 24132CCW3

MOQ : 10pcs

Payment Terms : T/T, Western Union

Supply Ability : 100pcs/month

Contact Now

Spherical Roller Bearings have tapered inner and outer ring raceways between which tapered rollers are arranged. The projection lines of all the tapered surfaces meet at a common point on the bearing axis. Their design makes tapered roller bearings particularly suitable for the accommodation of combined (radial and axial) loads. The axial load carrying capacity of the bearings is largely determined by the contact angle ; the larger α, the higher the axial load carrying capacity . An indication of the angle size is given by the calculation factor e; the larger the value of e, the larger the contact angle and the greater the suitability of the bearing for carrying axial loads.

SKF 24132CCW33

Description:
d(mm): 160
D(mm): 270
B(mm): 109
Weight(kg): 26

Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)	DWR
160	270	109	2.1	1,040	1,780	1,000	1,600	26	24132
160	270	109	2.1	1,040	1,780	1,000	1,600	25.6	24132K30
160	270	109	2.1	1,040	1,780	1,000	1,600	25.6	24132K30W33C3
160	270	109	2.1	1,040	1,780	1,000	1,600	26	24132W33C3
170	280	109	2.1	1,080	1,880	960	1,500	27.2	24134
170	280	109	2.1	1,080	1,880	960	1,500	26.8	24134K30
170	280	109	2.1	1,080	1,880	960	1,500	26.8	24134K30W33C3
170	280	109	2.1	1,080	1,880	960	1,500	27.2	24134W33C3
180	300	118	3	1,250	2,210	900	1,400	34.3	24136
180	300	118	3	1,250	2,210	900	1,400	33.8	24136K30
180	300	118	3	1,250	2,210	900	1,400	33.8	24136K30W33C3
180	300	118	3	1,250	2,210	900	1,400	34.3	24136W33C3
190	320	128	3	1,420	2,480	850	1,300	42.8	24138
190	320	128	3	1,420	2,480	850	1,300	42.2	24138K30
190	320	128	3	1,420	2,480	850	1,300	42.2	24138K30W33C3
190	320	128	3	1,420	2,480	850	1,300	42.8	24138W33C3
200	340	140	3	1,630	2,900	800	1,200	53.4	24140
200	340	140	3	1,630	2,900	800	1,200	52.6	24140K30
200	340	140	3	1,630	2,900	800	1,200	52.6	24140K30W33C3
200	340	140	3	1,630	2,900	800	1,200	53.4	24140W33C3

Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)	DWR
220	370	150	4	1,880	3,400	720	1,100	67	24144
220	370	150	4	1,880	3,400	720	1,100	66	24144K30
220	370	150	4	1,880	3,400	720	1,100	66	24144K30W33C3
220	370	150	4	1,880	3,400	720	1,100	67	24144W33C3
240	400	160	4	2,110	3,800	650	1,000	82.2	24148
240	400	160	4	2,110	3,800	650	1,000	80.9	24148K30
240	400	160	4	2,110	3,800	650	1,000	80.9	24148K30W33C3
240	400	160	4	2,110	3,800	650	1,000	82.2	24148W33C3
260	440	180	4	2,510	4,600	600	920	114	24152
260	440	180	4	2,510	4,600	600	920	112	24152K30
260	440	180	4	2,510	4,600	600	920	112	24152K30W33C3
260	440	180	4	2,510	4,600	600	920	114	24152W33C3
280	460	180	5	2,730	5,200	550	850	120	24156
280	460	180	5	2,730	5,200	550	850	118	24156K30
280	460	180	5	2,730	5,200	550	850	118	24156K30W33C3
280	460	180	5	2,730	5,200	550	850	120	24156W33C3
300	500	200	5	3,300	6,400	510	780	161	24160
300	500	200	5	3,300	6,400	510	780	159	24160K30
300	500	200	5	3,300	6,400	510	780	159	24160K30W33C3
300	500	200	5	3,300	6,400	510	780	161	24160W33C3

Product Tags:

spherical roller thrust bearing

metric spherical bearing

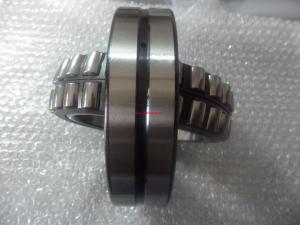

24132CCW33 SKF Spherical Roller Thrust Bearing , Roller Cage Bearing 160X270X109 Images
